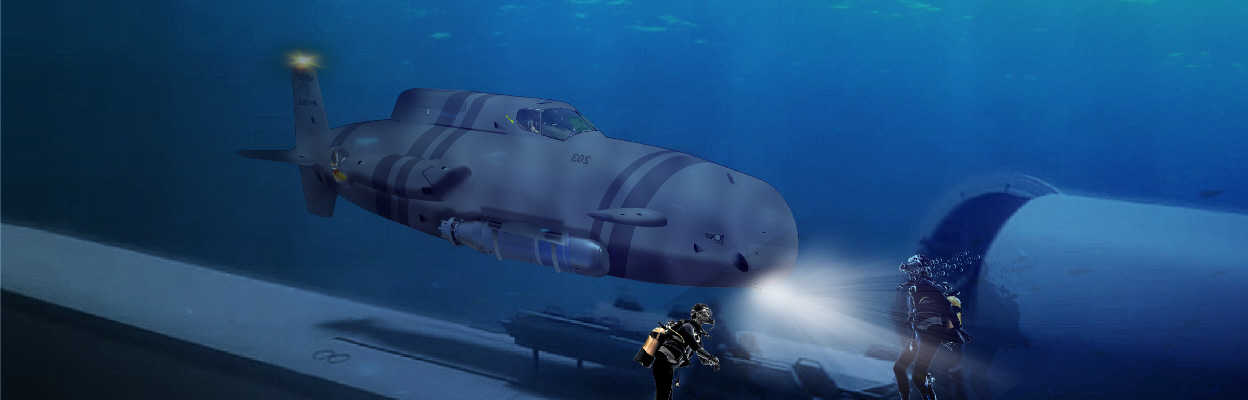

Neyk 9F Combat Submarine



Close Details ►

Principal particulars

Length, overall

Width, overall

Height

HuIl diameter

Entrance diameter

Displacement surfaced

Displacement submerged

Operational depth

Propulsion diesel engine

Propulsion two electric motors

Speed surfaced

Speed submerged



Dimensions for transportation

Length, overall

Width, overall

Height

Payload

Crew

Passenger area

Hydraulic power output

Max. hydr. pressure











9.000M (29,6ft)

3.300M (10,8ft)

2.600M (8,5ft)

1.500M 4,9ft)

0.600M (2ft)

12.000 Tons

14.000 Tons

300M (1000ft)

40kw

2x10kw

7 kn (approx.)

8 kn (approx.)





9.000M

2.325M

2.375M

350 Kg (approx.)

1 Pilot

5 Comfortableseats

6 kw

200 Bar





Total energy capacity (emergency)

Battery blocks in parallel  120 Volts

Type of batteries  Lithium Batteries



Weight of batteries  2 Tons (approx.)

Soft ballast. tank capacity  2 Tons

Compressed air capacity  1x250Ltr., 200 Bar

Oxygen    1 x250Ltr., 200 Bar



Life support

Mission life support  125 hrs for 6 pass.

Emergency life support  250 hrs for 3 pass.

C02 Absorbent   150 hrs for 6 pass.

Air Conditioning  M.P. Sofonlime/LIOA





Auxiliary battery   24Volt; KWh

Emergency battery  24Volt; KWh.

Main battery charging time 1 Hour
